Reference project

Gil Comes

Valencia

READY FOR FUTURE WITH A SUSTAINABLE REFRIGERATION INSTALLATION

For a fish processing company in the south

For the northern climate, nobody doubts the advantages of CO2 as a refrigerant, especially in retail and wholesale applications or food processing plants. For the southern climate, however, there are still some doubts in terms of efficiency. Nevertheless, CO2-installations are gaining ground, also in the industrial sector. Equipped with efficiency increasing technology such as parallel compression or ejectors, they are becoming more and more competitive. The increasing number of CO2-installations and growing experience proves the prediction, that they will outclass state of the art refrigerating systems, in terms of efficiency, even in southern climate.

CO2 for fish processing industry

In summer 2017, two transcritical CO2 racks with multi-ejector and parallel compression have been commissioned near Valencia, Spain. The two racks were installed in a fish processing plant and replaced a previous R507A installation. The synthetic refrigerant R507A belongs to the HFC-refrigerant group, which harms our environment due to its tremendous greenhouse effect. Therefore, it was a major concern of Gil Comes to replace the previous system with R507A by a system with natural refrigerants. R507A’s GWP (Global Warming Potential) is 3’985 times higher than CO2’s GWP. Furthermore, the CO2’s leakage does not strain our atmosphere, as it is a natural part of it, in contrast to a synthetic refrigerants leakage. The new CO2-system is designed to maintain four temperature levels: ultra-low temperature at -40°C, low temperature at -20°C, medium temperature at +2°C and medium temperature at +7°C. The total cooling capacity of the systems is 764 kW.

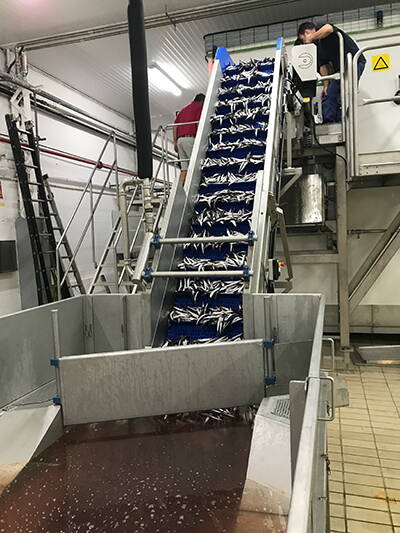

Anchovies on their way into the freezing tunnel
Anchovies on their way into the freezing tunnel

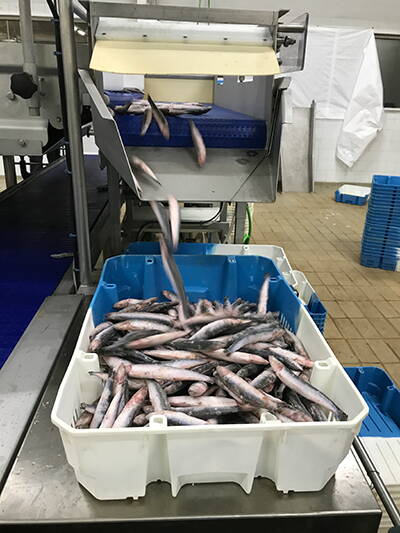

Anchovies after freezing
Anchovies after freezing

Cold as ice

Gil Comes needs the refrigeration system for its fish processing plant in order to chill and freeze the fish. The fish with a temperature between +1°C and +3°C are placed in a freezing tunnel to be frozen down to -23°C for storage. To ensure the temperature before entering the tunnel, the fish is placed in ice-water at +0.5°C. With 400 kW at an evaporation temperature of -45°C, the fish is frozen down to -23°C in the freezing tunnel within 8 minutes. The freezing tunnel’s processing capacity is 3000 kg per hour or 24 tons per day.

Ready for future

In order to fulfil the requirements, two independent transcritical CO2 boosters were installed. The two installations were designed each to provide medium and low temperature. If there is a failure on one installation, the other one is able to keep operations running. With the new refrigeration system Gil Comes set its course for the future. The installation, running with natural refrigerants not only allows the fish processing company to reduce its CO2 footprint, but also to avoid any conflict with EU’s F-Gas regulation*.


*As of 2020, EU’s F-Gas regulation will ban and limit certain synthetic refrigerants, which will have considerable consequences to operation costs of refrigeration installations. This constriction will lead to a refrigerant quantity shortage and, therefore, will increase prices drastically.

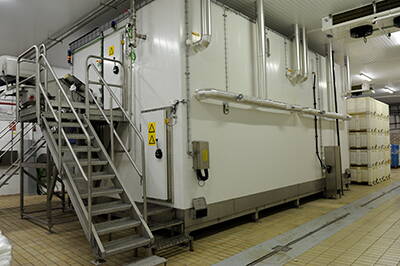

Freezing tunnel
Freezing tunnel

Project overview

Client
Gil Comes Valencia

Area
Retail

Location
Valencia (ES)

Cooling capacity
764 kW

Refrigerant
CO2

Technology
Freezer tunnel for fish production and product refrigeration

Refrigeration system
CO2 Booster systems with parallel compression

Planning performance
Conception

Implementation of freezer tunnel technology for CO2 refrigerant

Energy saving

Implementation of CO2 refrigerant to industrial applications

Heat recovery implementation of tap hot water

Installation quality management

Tecnical support of local refrigeration company

Start-up support

Technical training of local refrigeration company

Our Role

In this project, Frigo-Consulting was responsible in the following:


  • Engineering, coordination and realisation of sustainable refrigeration installations and heat pumps

  • Engineering and linking together of HVAC/R-systems

  • Innovations for primary energy savings

  • Application fields: medium (MT) and low (LT) temperature refrigeration, AC and heating

  • Maintenance support

  • Training and Audits
